CCSS.Math.Content.3.MD.B.4
The Standard
Generate measurement data by measuring lengths using rulers marked with halves and fourths of an inch. Show the data by making a line plot, where the horizontal scale is marked off in appropriate units— whole numbers, halves, or quarters.
Common Core State Standards for Mathematics · Measurement and Data
Teacher's field guide
What This Standard Means
What Students Need to Do
- Students use inch rulers to find and record lengths to the nearest quarter inch. They organize repeated measurements on a line plot with a scale that matches the data.
What Mastery Looks Like
- A student aligns each object with zero, reads quarter-inch intervals correctly, and records mixed numbers such as 2 1/4 inches. The student places one X for every measurement above the correct value and explains what the plot shows.
Common Misconceptions
- Students may line up an object with the ruler’s edge instead of zero, or count tick marks rather than spaces. They may confuse 1/4 with 3/4, treat 2/4 as different from 1/2, or space values unevenly. Some forget that repeated measurements need repeated Xs.
How to Assess It
- Give students three paper strips and a quarter-inch ruler. Ask them to record each length and make a labeled line plot with one X per strip.
Lesson moves
Ways to Teach It
Have pairs measure six classroom objects with quarter-inch rulers, record the lengths, and build a shared line plot with sticky-note Xs.
Display a line plot with one misplaced X and ask students to write how they know where it belongs.
Play Measure and Plot: students draw object cards, measure each item, then earn a point for placing the X correctly.
Measure shoe lengths from five volunteers, make a line plot, and use it to identify the most common length.
Free download

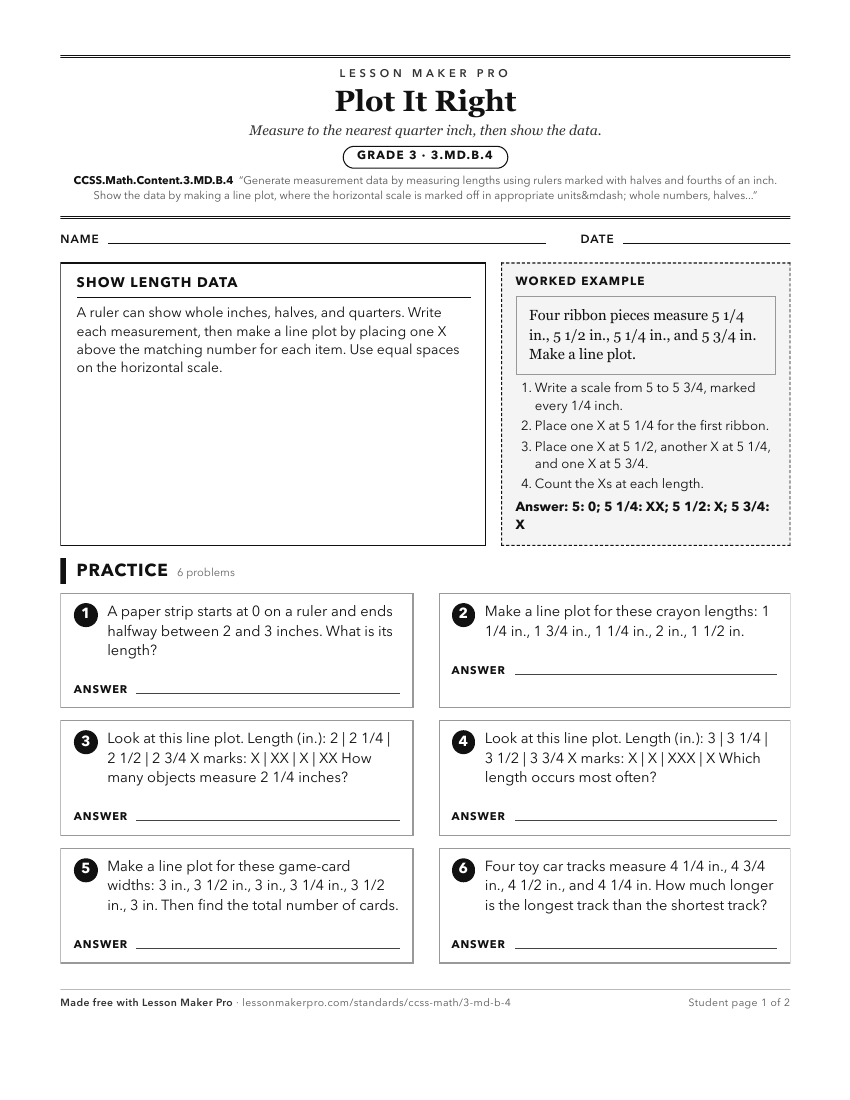

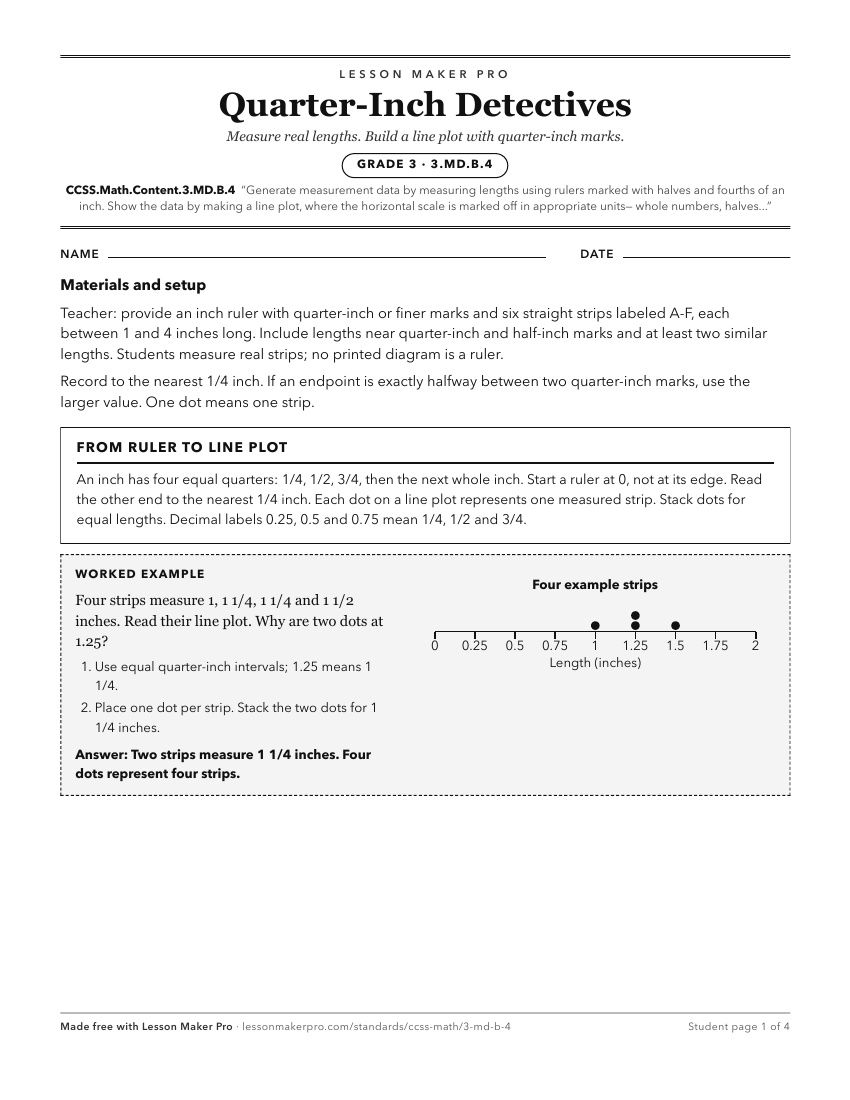

Printable 3.MD.B.4 Worksheet
A ready-to-print activity worksheet aligned to CCSS.Math.Content.3.MD.B.4, with an answer key for the teacher on its own page. No account needed.
PDF, US Letter, prints cleanly in black and white.
Download the worksheetLearning progression
Where This Standard Sits
See the whole path on the Measurement & Data progression map.
Before This Standard
If students are struggling here, check these first.
- CCSS.Math.Content.3.NF.A.2a
Partitioning a whole into equal fractional lengths supports reading ruler marks and placing halves or quarters on a line plot scale.
- CCSS.Math.Content.2.MD.D.9
Students extend whole-unit measuring and line plots to ruler measurements and scales using halves and quarters.
- CCSS.Math.Content.2.MD.A.1
Students must already use rulers to measure length before measuring to halves and fourths and plotting those measurements.
What This Unlocks
Mastery here sets students up for these next.
Keep exploring
Related Standards
Turn this exact standard into a lesson
Grade, subject, topic, and the complete standard are prefilled. Create one free, no account needed.
