Georgia S8P5.b
The Standard
Plan and carry out investigations to demonstrate the distribution of charge in conductors and insulators.
Georgia Standards of Excellence for Science · Obtain, evaluate, and communicate information about gravity, electricity, and magnetism as major forces acting in nature.
Teacher's field guide
What This Standard Means
What Students Need to Do
- Students plan and run a fair test comparing how electric charge behaves on conducting and insulating materials. They collect observations and use them to explain where charge spreads or stays localized.
What Mastery Looks Like
- Students can show that excess charge redistributes across a conductor but remains near the charged area on an insulator. They control variables, record results, and support their claim with evidence.
Common Misconceptions
- Students may think conductors create charge or that charge disappears inside them. They may think charge spreads through insulators just as it does through metals. They may also treat attraction as proof of charge, although neutral objects can be attracted through polarization.
How to Assess It
- Give students a metal strip, plastic strip, charged balloon, and electroscope, then ask them to write a three-step investigation comparing charge distribution.
Lesson moves
Ways to Teach It
Charge one end of equal foil and plastic strips, then test several locations with an electroscope and map the results.
Ask students to explain why touching one end of a metal doorknob differs from touching one end of a plastic ruler.
Play a sorting game using material cards, then have teams predict whether added charge will spread or remain localized.
Compare static charge on a plastic comb with charge moving through copper wiring in a household circuit.
Free download

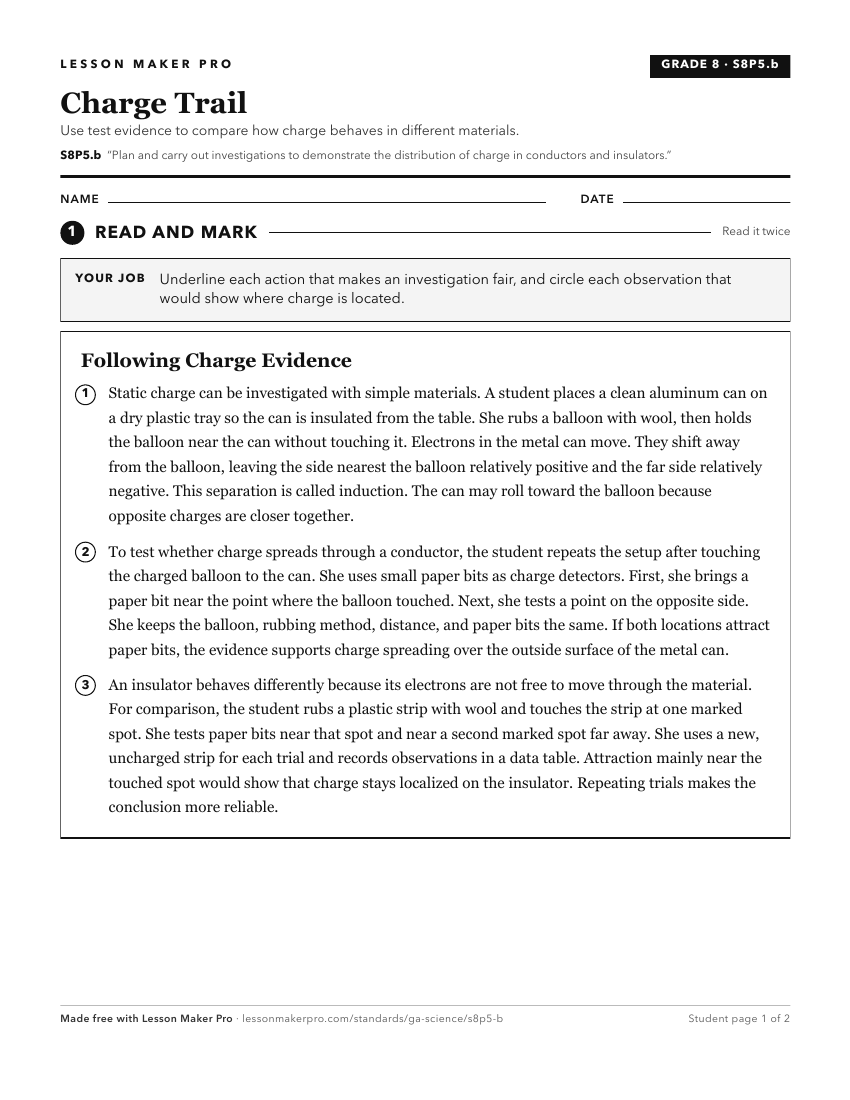

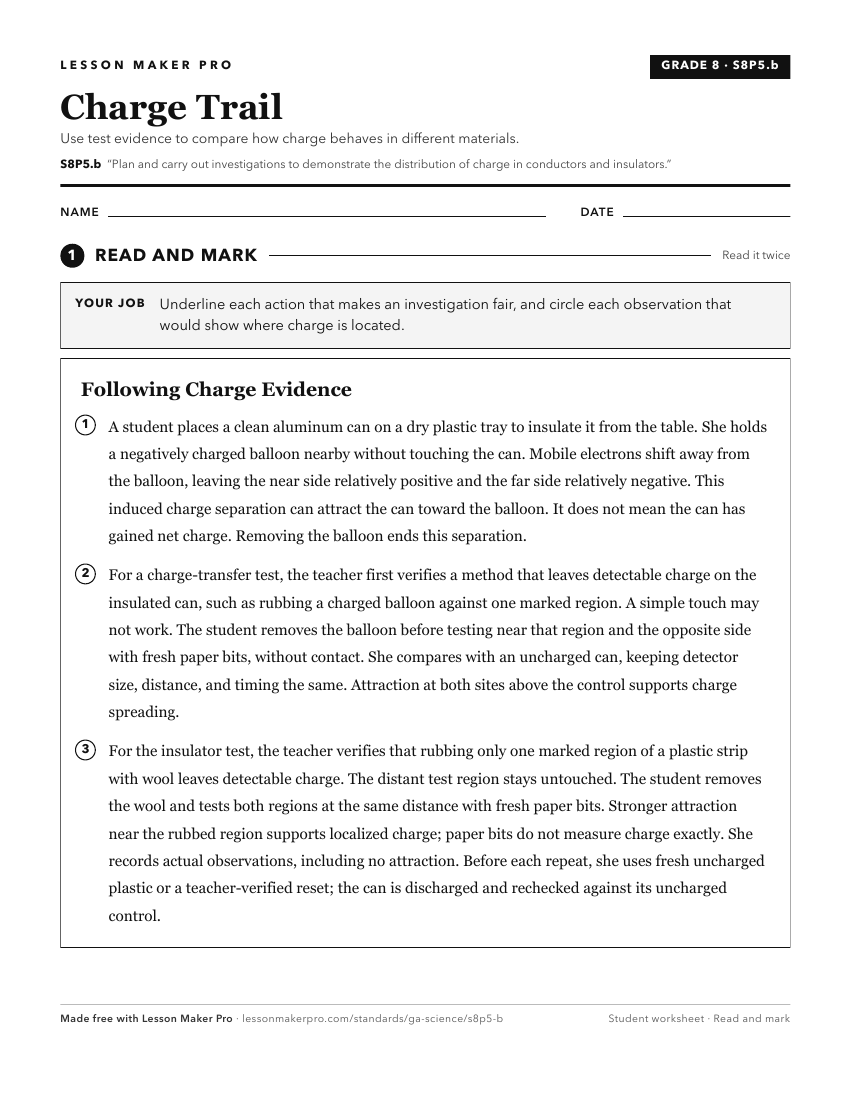

Printable S8P5.b Worksheet
A ready-to-print activity worksheet aligned to S8P5.b, with an answer key for the teacher on its own page. No account needed.
PDF, US Letter, prints cleanly in black and white.
