Florida B.E.S.T. MA.912.GR.5.1
The Standard
Construct a copy of a segment or an angle.
Florida B.E.S.T. Standards for Mathematics
Teacher's field guide
What This Standard Means
What Students Need to Do
- Students use a compass and straightedge to reproduce a given length or angle at a new location. They preserve size without relying on ruler or protractor measurements and explain why the construction works.
What Mastery Looks Like
- A student accurately transfers a length and an angle to new locations using a compass and straightedge. The student leaves clear construction marks and explains how equal compass radii ensure congruence.
Common Misconceptions
- Students may measure with a ruler or protractor instead of transferring distances with arcs. They may change the compass width midway or think an angle depends on the lengths of its sides. Some mark the wrong arc intersection.
How to Assess It
- Give students a marked segment, an angle, a starting point, and a ray. Ask them to reproduce both figures using only a compass and straightedge, leaving all arcs visible.
Lesson moves
Ways to Teach It
Give pairs a compass, straightedge, and two target rays; students transfer one marked length and one angle, then check with tracing paper.
Ask, “Why do equal compass radii produce matching figures?” Students write three sentences and label the arcs that support their claim.
Run a relay where teams complete four construction cards, earning a point only when tracing-paper overlays match.
Have students reproduce a roof pitch on cardboard using a compass and straightedge, then compare the two slopes with an overlay.
Free download

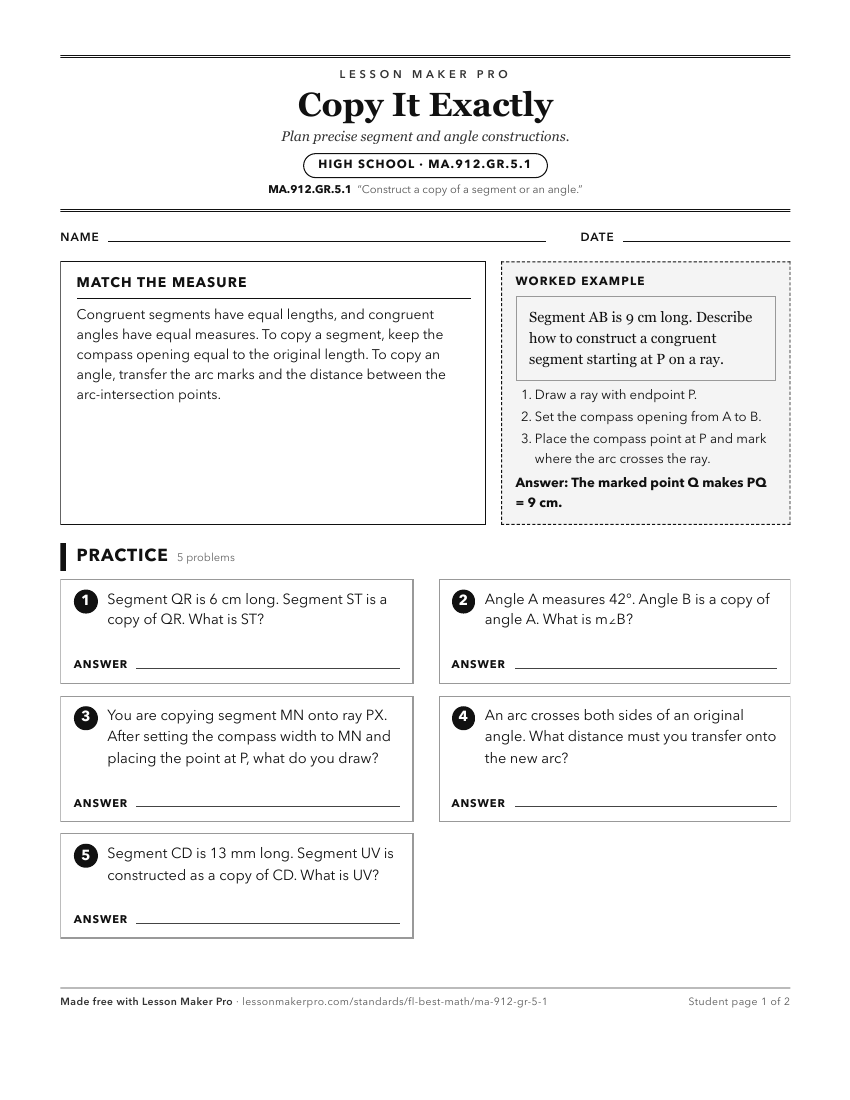

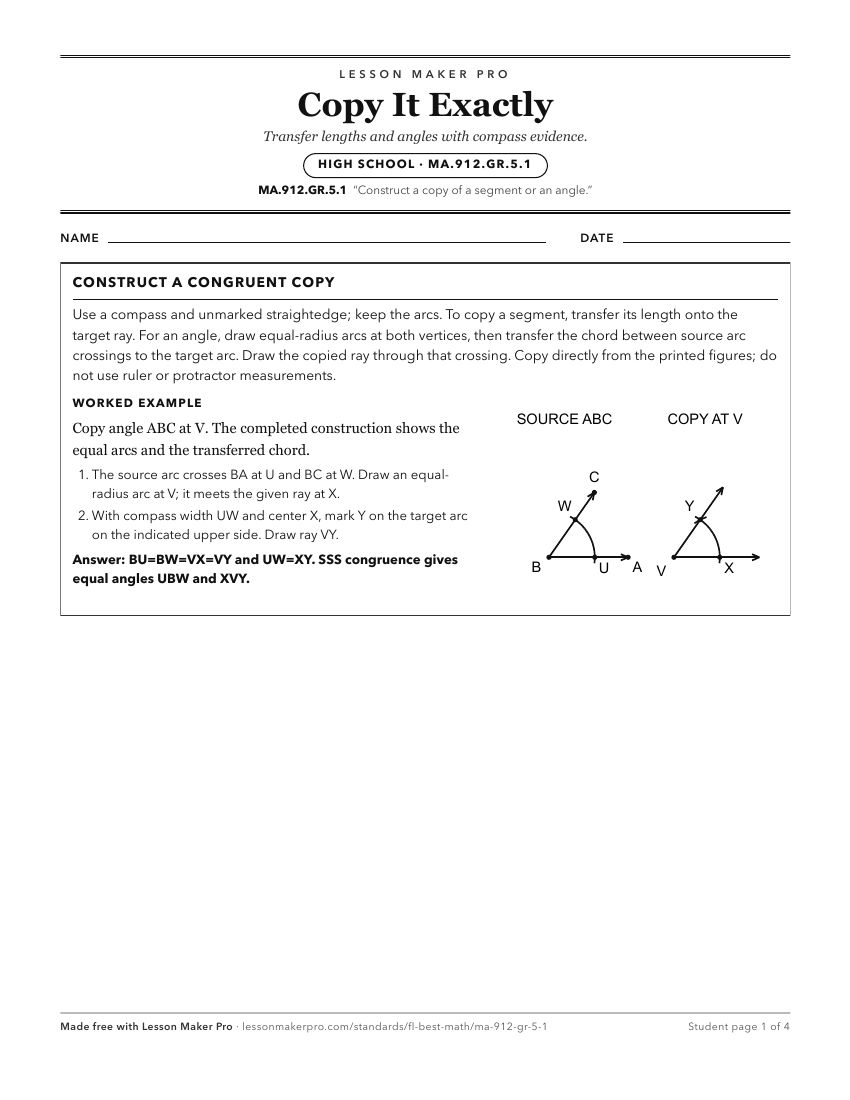

Printable MA.912.GR.5.1 Worksheet
A ready-to-print activity worksheet aligned to MA.912.GR.5.1, with an answer key for the teacher on its own page. No account needed.
PDF, US Letter, prints cleanly in black and white.
